◆ Features

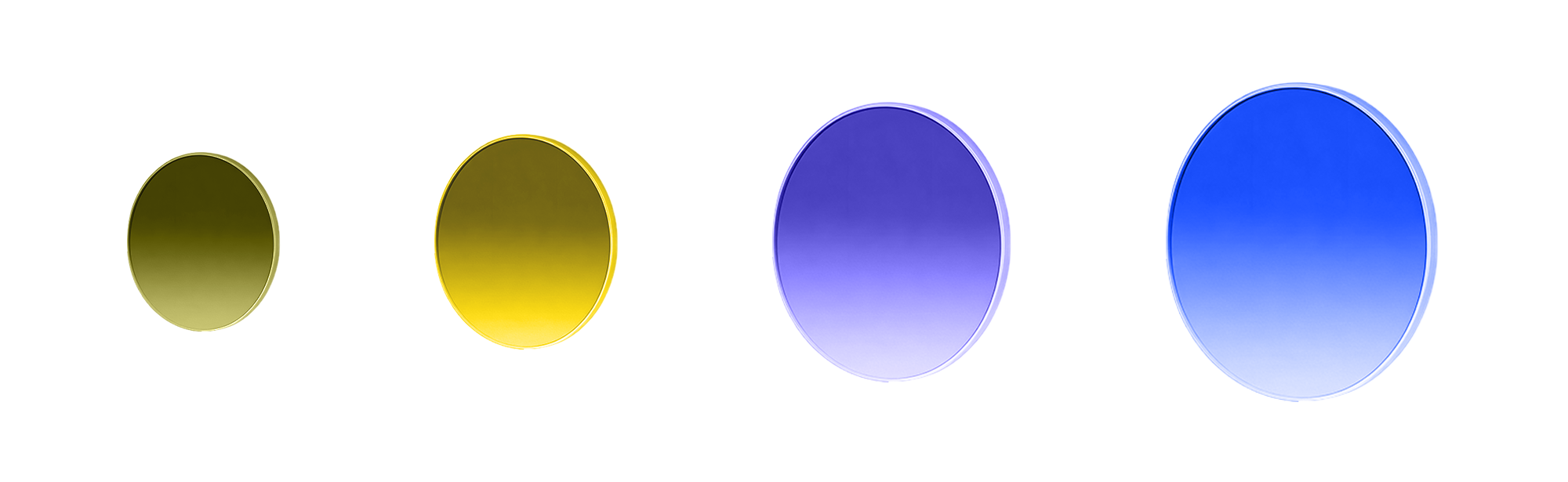

This is a dichroic beamsplitter, specifically designed for the separation and combination of different wavelengths in laser systems. Through its special multi-layer dielectric coating design, it achieves efficient transmission of specific wavelengths and efficient reflection of other wavelengths, and is widely used in optical systems that require multi-wavelength operation.
It features high transmittance and reflectance, with both the average transmittance and average reflectance reaching over 90% within the specified wavelength band range.
Excellent spectral performance and high optical precision.
◆ Common Specifications
Material | H-K9L |
Clear aperture | 90%CA |
Surface Quality | 20/10 |
Surface Flatness | λ/4@633nm |
◆ Applications
Fluorescence Microscopy Systems
Spectral Analysis Systems
Multi-Wavelength Laser Systems
High-Performance Scientific Research Experiments
Optical Path Design: Incident light must be directed onto the coated surface at the specified angle.
Mechanical Mounting: Must be installed using specially designed mounts that precisely control the angle.
Cleaning Protocol: Avoid organic solvents. Use dry, clean compressed air or nitrogen gas for gentle blowing.
Coating Maintenance: Avoid mechanical contact or friction on the coated surface.
Packaging and Storage: Each filter should be individually packaged to prevent abrasion and stored in a dry, clean environment.
Material | H-K9L | Diameter | Φ12mm |
Diameter Tolerance | 0.0/-0.1mm | Thickness | 3mm |
Thickness Tolerance | ±0.1mm | Coating | Beam Splitter Coating； AR coating |
Beam Splitter Coating | HT>99%@532nm HR>95%@633±10nm | AR coating | T>99%@532±10nm T>90%@400-700nm |
Parallelism | 5' | Surface Quality | 20/10 |
Surface Flatness | λ/4 @633 nm | Clear aperture | >90%CA |
Angle of incidence | 45° |
