◆ Features
Efficient and Fast Rapid detection of chroma and brightnes
User-Friendly Automatic exposure test with one-click operation
Easy Data Handling Simplified data analysis and export
Cost-Effective Optimized for budget-conscious applications
Expanded Brightness Range Built-in ND filters improve brightness measurement
Uniformity Evaluation False color display for brightness uniformity assessment
High Resolution 50 to 100 million pixels with scientific refrigeration
Versatile Lens Compatibility Compatible with VR imitation lenses and electric/manual lenses
◆ General Specifications
Focal length available | 37.8 mm; EF Lenses | Luminance (minimum) | 0.005 cd/m²limit of detection |
Diagnal FOV | 35° | Luminance (maximum) | 10^8 cd/m²with optional ND filters |
Horizontal FOV | 35° | System accuracy | Illuminance±2%; Luminance (Y)±2%; Color Coordinates±0.003 |
Vertical FOV | 35° | Min. measurement time | 1.4 seconds |
Sensor pixel resolutio | 11264x9200 | Lens type | Conoscope lenses; EF lenses |
Sensor megapixels | 103 | Communication interface | CoaXPress |
Pixel size (μm) | 3.2 | Power | 100-240 V,50-60 HZ,140 W |
Focus VID range | -7 D ~+4 D | Operating temperature | 0-30 ℃ |
System dynamic range | 59 dB(1×1binning);66.4 dB | Operating humidity | 20%-70% non-condensing |
Short-term repeatability | Illuminance±0.003%; Illuminance (Y)±0.003%; Color Coordinates (x，y)±0.0005 | ||
◆ The Spectrum IQ is designed for high-speed and precise luminance and Chrominance distribution analysis. Calibrated with a CMOS image sensor, it rapidly delivers image-like color data from cameras with resolutions ranging from 50 to 100 million pixels, ensuring high-resolution detail for rigorous testing.
◆ The Spectrum IQ's accuracy in matching CIE XYZ standards is remarkable. It provides brightness and chroma accuracy for single-shot sample tests, with chroma accuracy of ±0.003 and brightness accuracy of ±2%.
① Quality control in the lighting industry
② Display panel inspection
③ Automotive and consumer electronics
④ Scientific research and industrial inspection

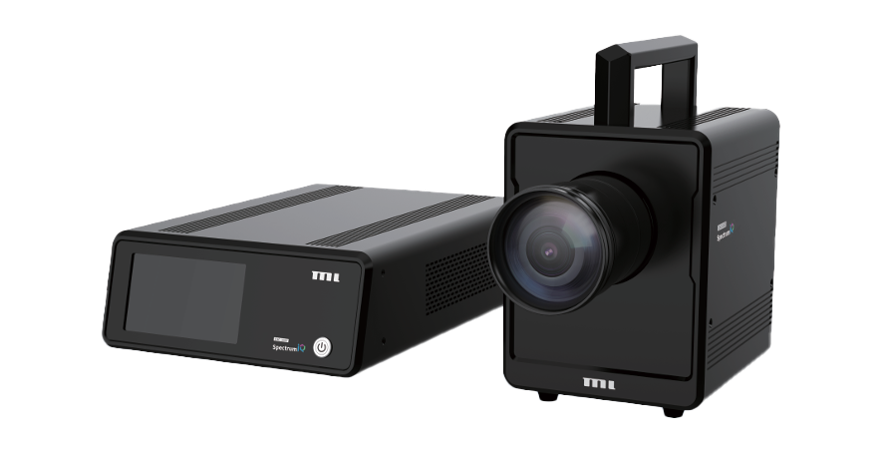

Spectrum IQ Imaging Colorimeter
